進口低溫焊接截止閥
品牌：美國威盾VTON
USA VTON VTDJ50PH Low-temperature Globe Valve
低溫焊接截止閥主要用于管道系統(tǒng)在低溫狀態(tài)下對液氧、液氮等介質的截斷或接通。該系列產品的特點：①閥門的流道為大圓弧過渡流線型，使介質在流道中的阻力較��；②填料密封雙填料, 可使用在不同的場合，雙填料能有效地防止冷損，從而使密封效果得到加強，保證介質不外漏，并使手輪處于常溫下，啟閉靈活。
Low-temperature Globe Valve is mainly used for truncating or connecting the liquid oxygen, nitrogen and other media at low temperature. Product features: ① flow valve streamlined for large arc transition, the medium in the flow resistance in the smaller.② Double packing filler, can be used on different occasions, two filler can effectively prevent cold damage, so that the seal has been strengthened to ensure that the media does not leak, and to hand wheel at room temperature, open and close flexible.
VTDJ50PH型低溫焊接截止閥的資料：
VTDJ50PH Low-temperature Globe Valve

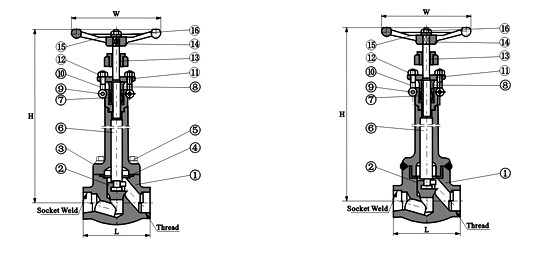

低溫焊接截止閥標準材質細表
A detailed statement of material
|
NO |
Part Name |
AStoASTM |
SStoASTM |
|
A350 LF2 |
A350 LF3 |
A182 F304 |
A182 F316L |
|
1 |
Body |
A350 LF2 |
A350 LF3 |
A182 F304L |
A182 F316L |
|
2 |
Valve |
A276 410 |
A276 304L |
A276 304L |
A276 316L |
|
3 |
Cover |
A350 LF2 |
A350 LF3 |
A182 F304L |
A182 F316L |
|
4 |
Gasket |
316 and Flexible Graphite
|
316 and PTFE |
|
5 |
Bolts and nuts |
A193 B7 |
A193 B7 |
A193 B8 |
A193 B8M |
|
6 |
Stem |
A182 F6 |
A182 F6 |
A182 F304L |
A182 F316L |
|
7 |
Filler |
Flexible Graphite |
PTFE |
|
8 |
Sets |
A276 420 |
A182 F304 |
|
9 |
Pin |
A276 420 |
A182 F304 |
|
10 |
bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
11 |
Filler plate |
WCB |
A351 CF8 |
|
12 |
Nuts |
A194 2H |
A19 44 |
A194 8 |
A194 8M |
|
13 |
Stem nut |
A276 410 |
|
14 |
Handwheel |
A197 |
|
15 |
Nameplate |
SS |
|
16 |
Nuts |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
Temperature |
≥-40℃ |
≥-101℃ |
≥-206℃ |
低溫焊接截止閥主要連接尺寸及重量
Main connection dimensions and weight
|
NPS |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2" |
|
L |
79 |
92 |
111 |
120 |
120 |
172 |
200 |
|
H開 |
330 |
337 |
370 |
480 |
410 |
474 |
546 |
|
W |
100 |
100 |
125 |
160 |
160 |
180 |
200 |
|
WT |
Bolted |
5.2 |
7.2 |
10.9 |
13.5 |
15.2 |
19.8 |
29.0 |
|
Welding |
4.8 |
6.5 |
9.5 |
11.5 |
13.1 |
17.5 |
26.8 | |
